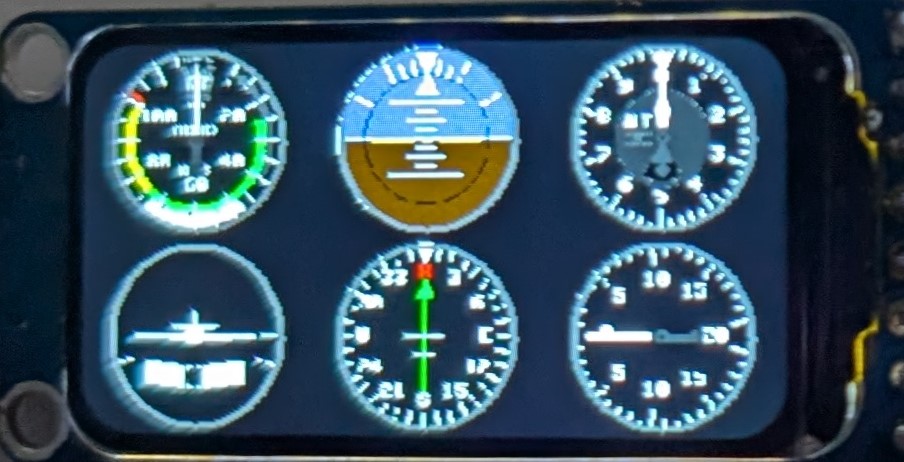

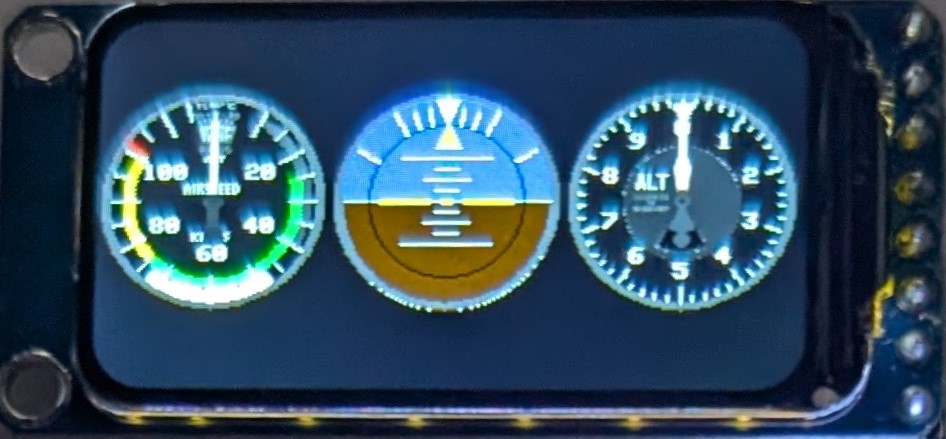

1.47 Inch Color TFT IPS LCD display with 320 x 172 resolution for compact, realistic FPV cockpit displays.
Each screen includes an interface board and a 15 cm 8-pin GH cable for easy connection and installation.
A Gauge Controller is required to display live data.
See Display Info to compare screen sizes, resolutions, and display options.
| Weight | 0.6 lbs |
|---|---|
| Board Dimensions | 44.0 x 21.2 mm |
| Size - diagonal | 1.47" |
| Resolution | 320 x 172 |
| Gauges displayed | 3 or 6 (scaled) |
| Active Area | 32.35 x 17.4 mm |
