0.71" round screen
- Product Code: 0.71" screen
- Availability: 17
-
$19.00
0.71 Inch round Color TFT IPS LCD screen, 160 x 160 pixels
All screens have an interface board and come with a 15cm 8 pin GH cable
Gauge Controller needed to display data
See Screen Info to compare all screen info
 |
 |
 |

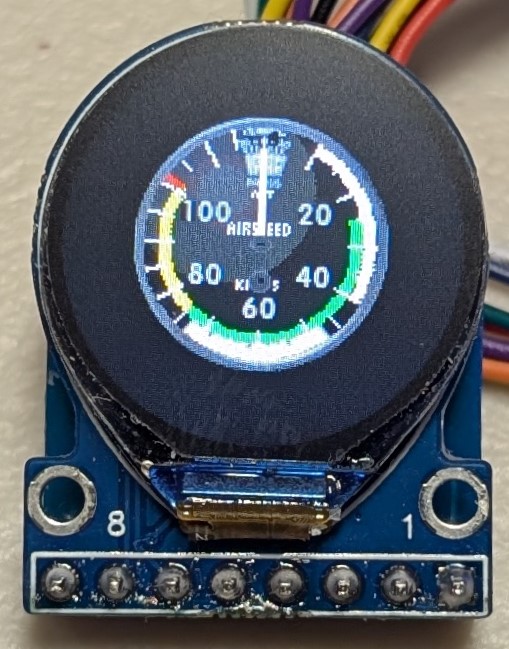

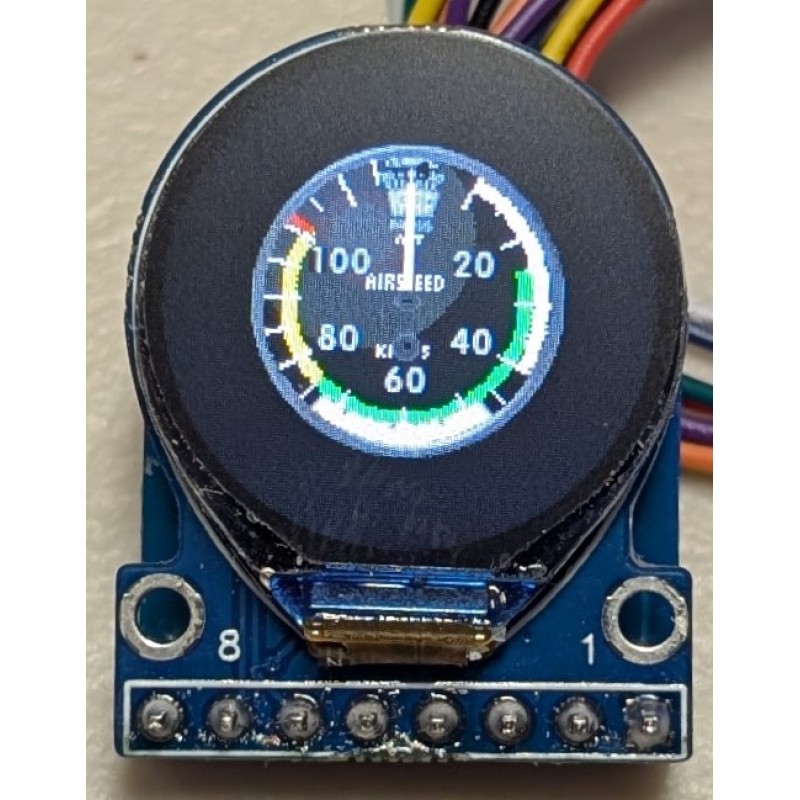

Display 1 instrument at 100% |

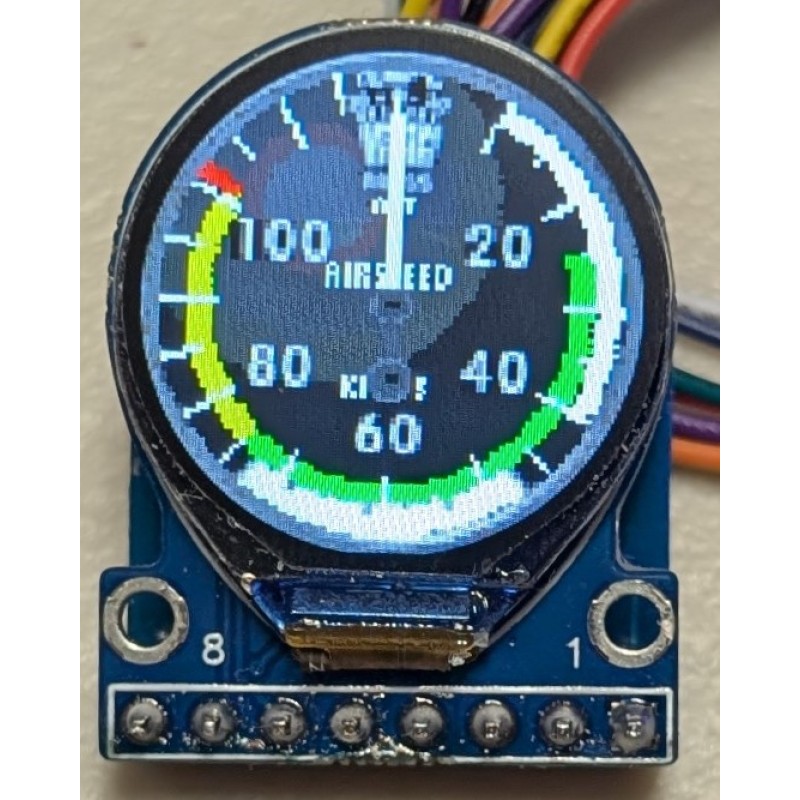

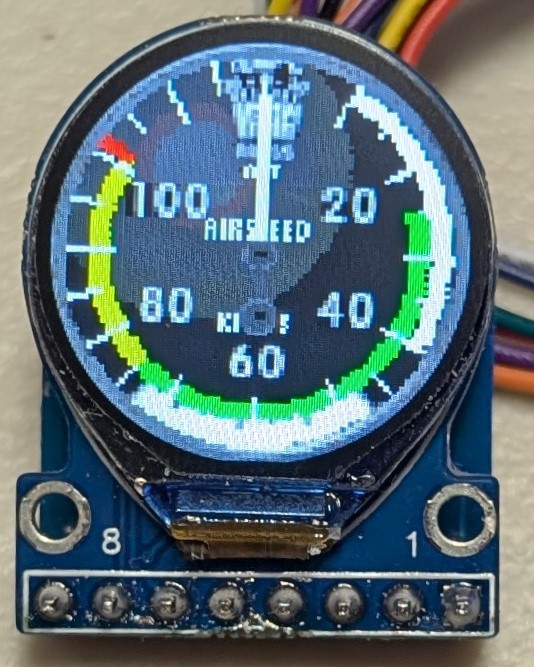

Display 1 instruments with scale option turned on |

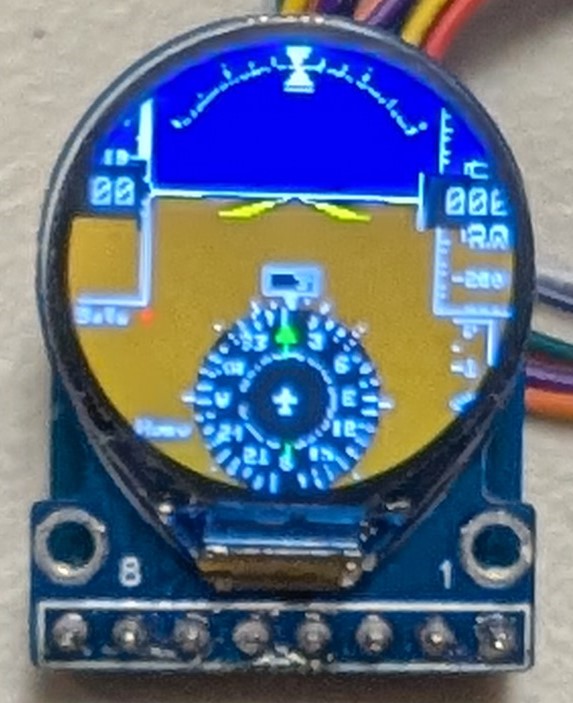

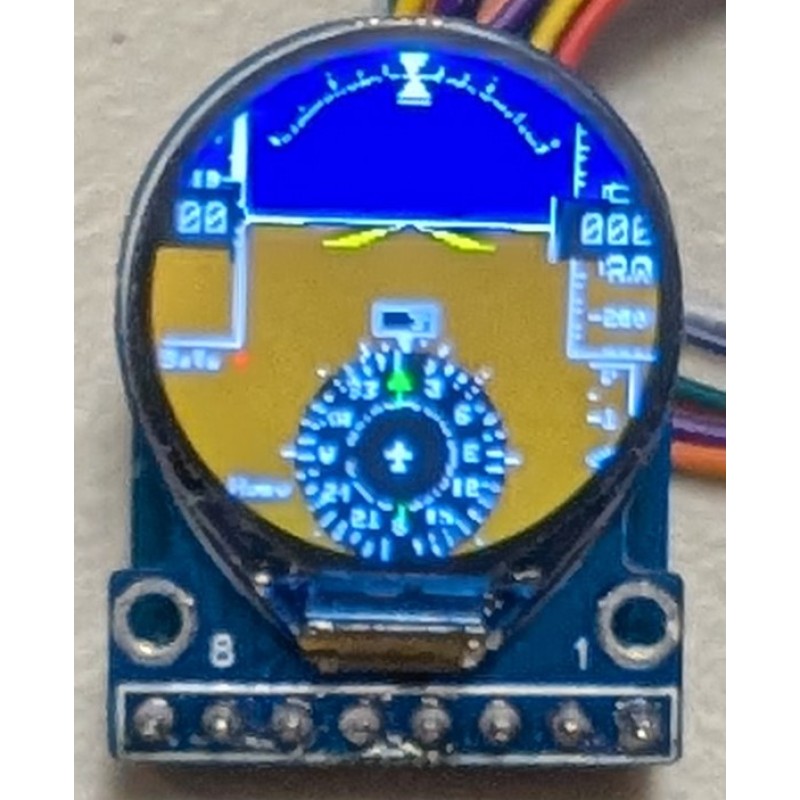

G1000 scaled to fit |
 |
 |
 |

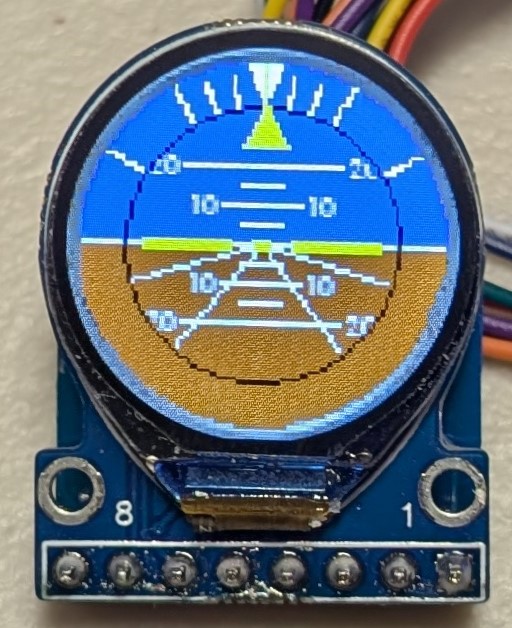

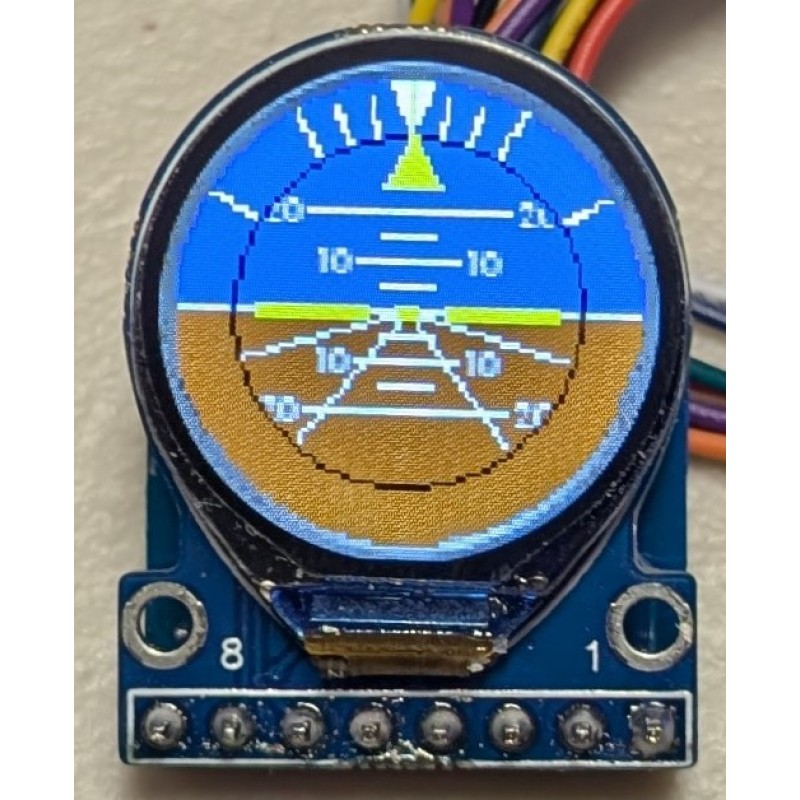

Attitude scaled to fit |

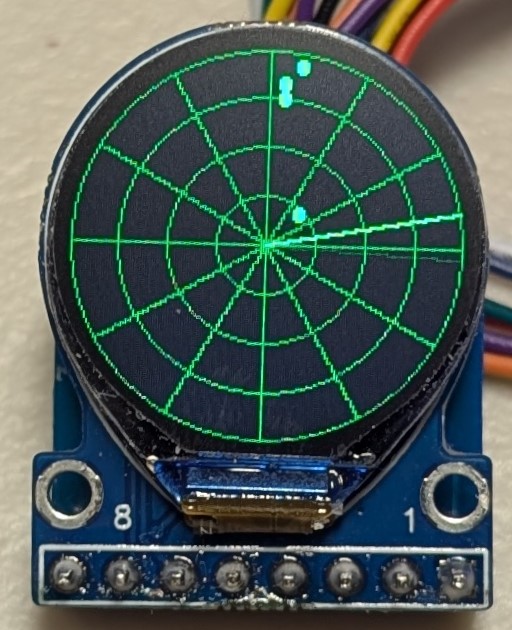

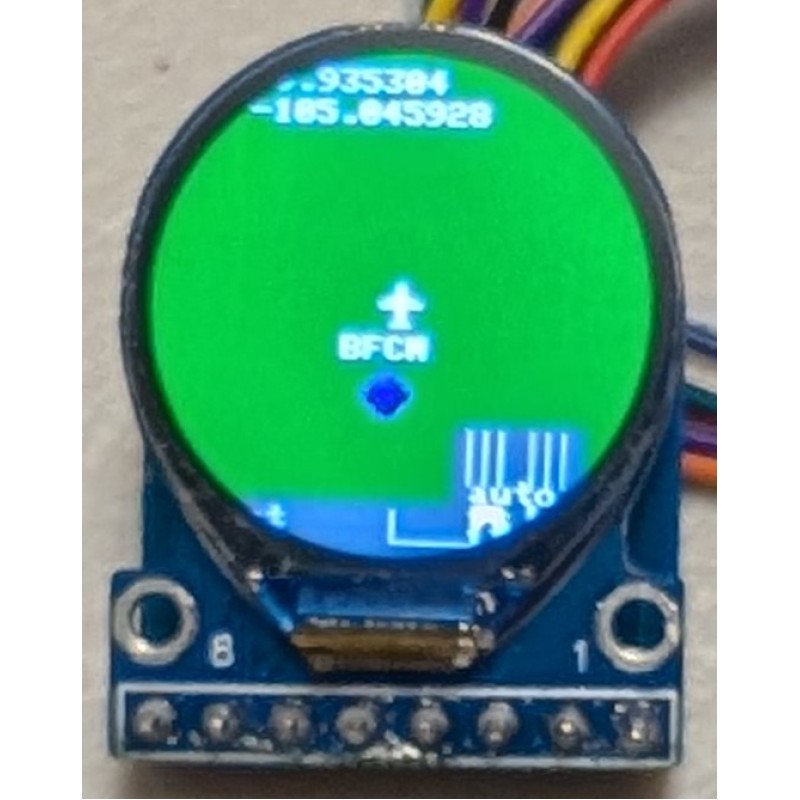

Aircraft radar (data simulated) |

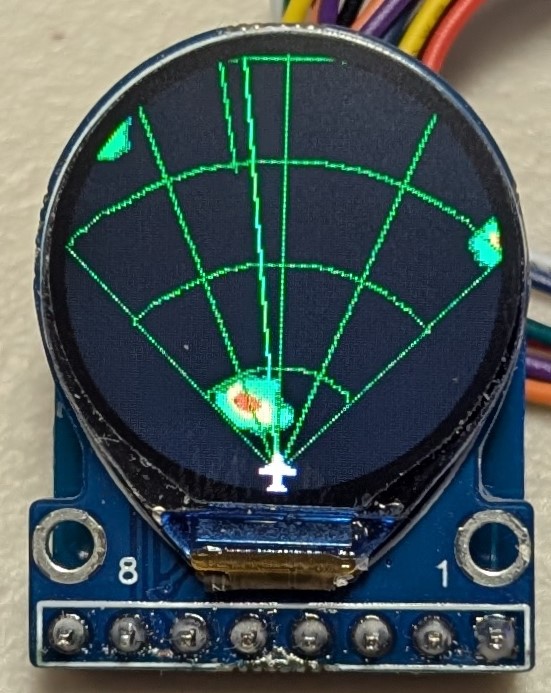

Weather radar (data simulated) |

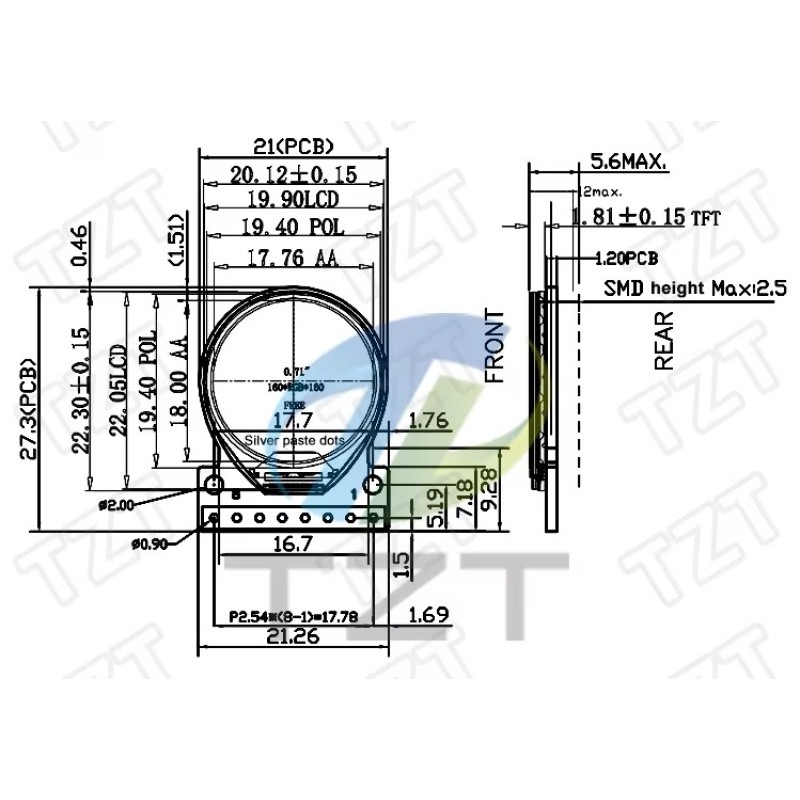

| screen | |
| Size - diagonal | 0.71" |
| Resolution | 160x160 |
| Active Area | 17.76 x 18 |

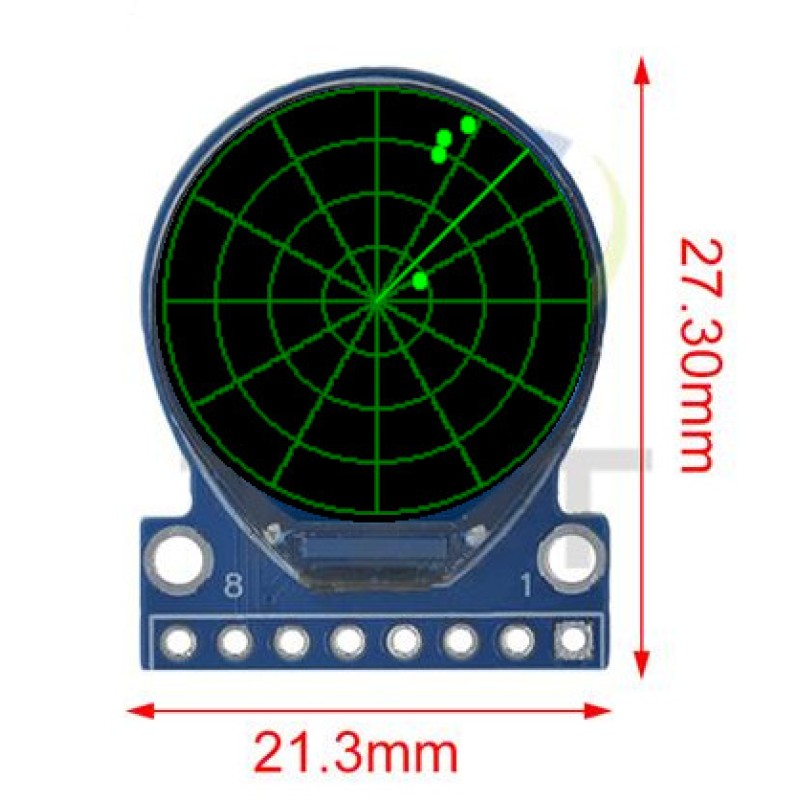

| Board Dimensions | 27.3 x 21.26 |
| Gauges displayed | 1 |
| Pixel Pitch | 0.11 |
| Pixels/mm | 9 |
