Cables

Gauge Controller to flight controller cable

When purchasing a gauge controller, you will need to select a cable to plug into the flight controller

Cables are silicon coated and color coded (black, red, blue, green).

The gauge controller has 4 .1" pins and uses a 4pin DuPont connector.

For flight controllers that have .1" headers

Matek and similar controllers, you will want one of the following cables.
Select either 10, 20, or 30 CM length.
Cables come with a variety of connectors so the flight controller end can be customized to plug into pins regardless of their position on the flight controller.

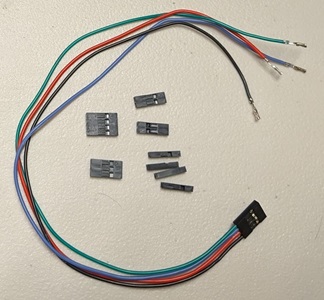

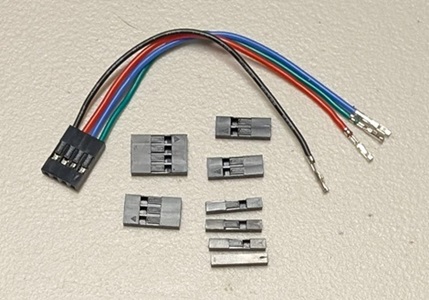

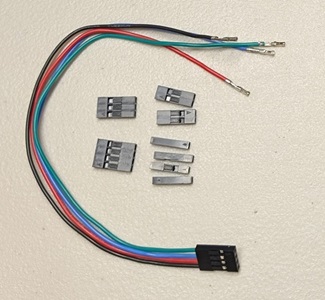

10 CM .1" connector	20 CM .1" connector	30 CM .1" connector

---

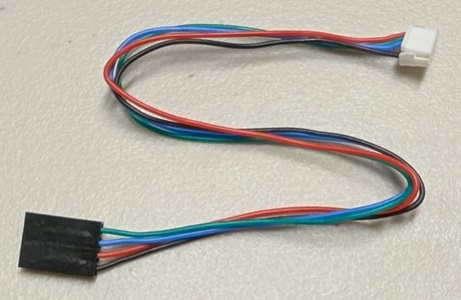

For flight controllers with 6 pin GH connectors

For SpeedyBeeF405Wing and pixhawk controllers.
Select either 20, 30 or 40 CM length.

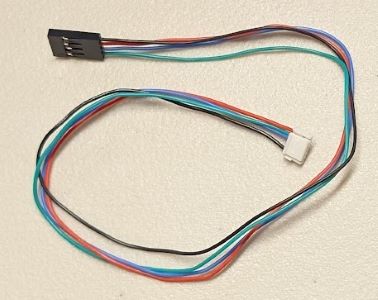

20 CM GH plug	30 CM GH plug	40 CM GH plug

Below is the pinout for the GH connector, as long as your flight controller has a plug shown below, this in the cable you want

---

For the controllers with 4 pin GH connectors

For Roban X2 flight controller
Select either 20, 30 or 40 CM length.

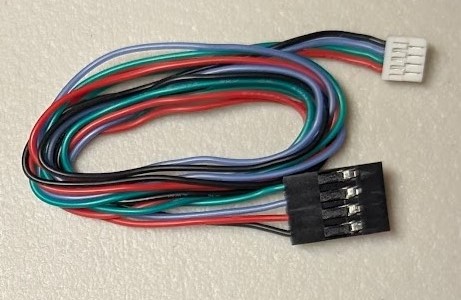

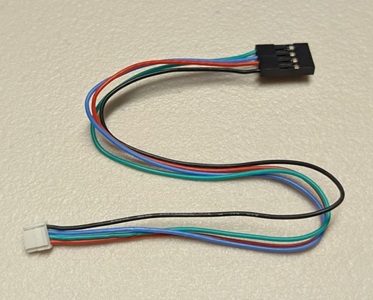

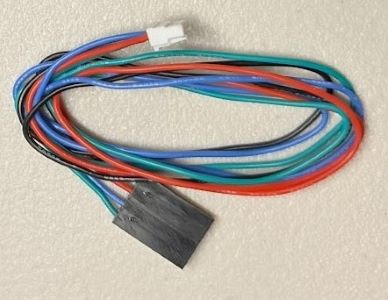

20 CM 4 pin GH plug	30 CM 4 pin GH plug	40 CM 4 pin GH plug

Be sure the wiring is correct and plugged into the controller the correct way, or the microcontroller could burn up.

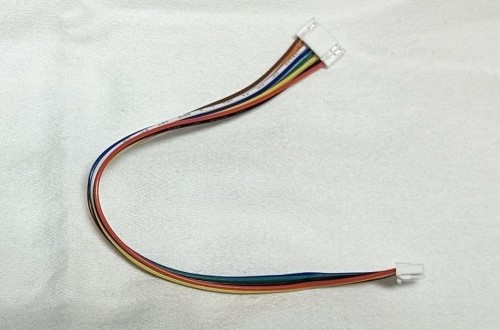

All screens come with a 15 CM 8 pin GH cable to plug into the controller.
